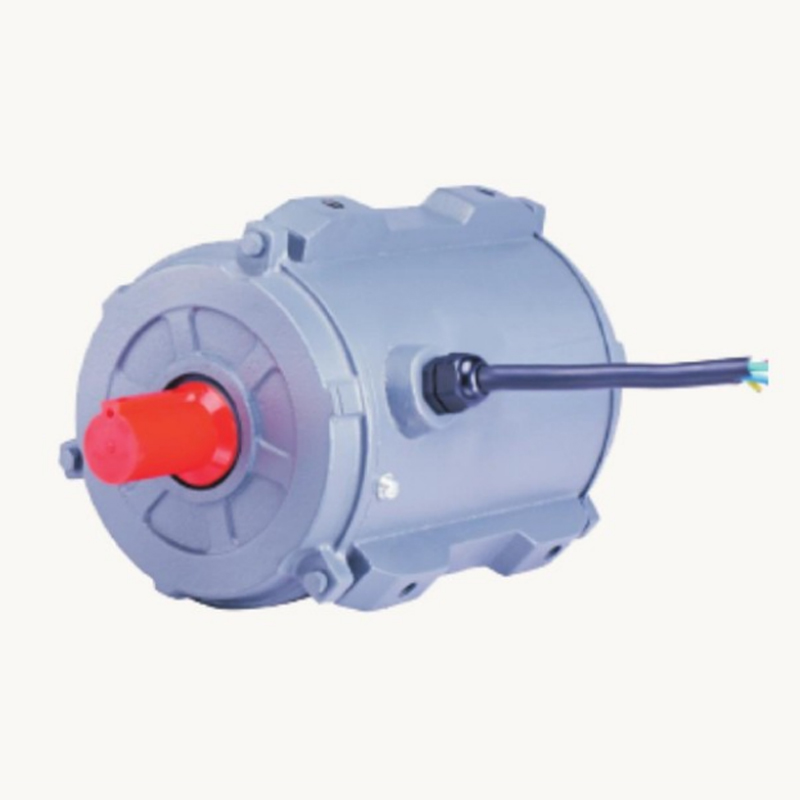

THREE PHASE ASYNCHRONOUS MOTOR FOR YT SERIESAXIAL FLOW FAN

The motors are totally enclosed,squirrel cage three phase induction motor.They have the advantages of high efficiency,energy saving,big starting torque,good performance and low noise.

Electrical characteristics

Ambient temperature：-15℃~45℃

Altitude：lesss than1000m

Rated Frequency：50Hz

Rate voltage：380V

Connection method：3KW and below is Y,the others are△

Duty：continuous S1

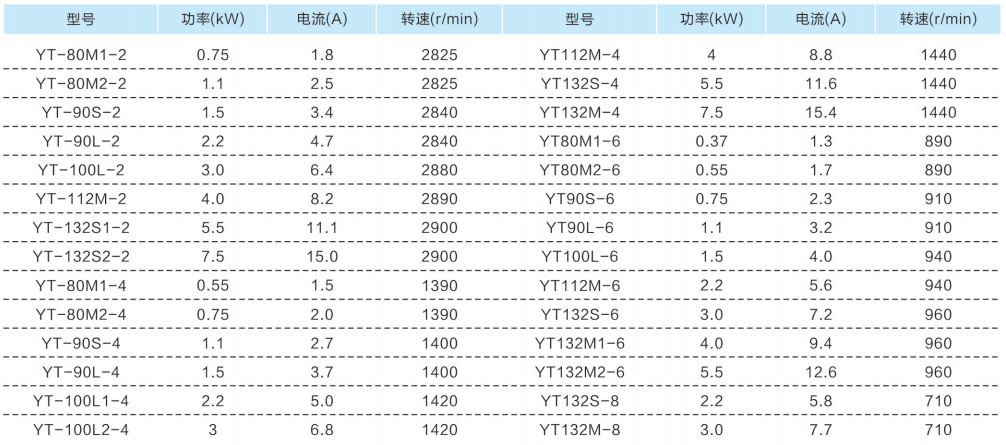

Main Technical Data

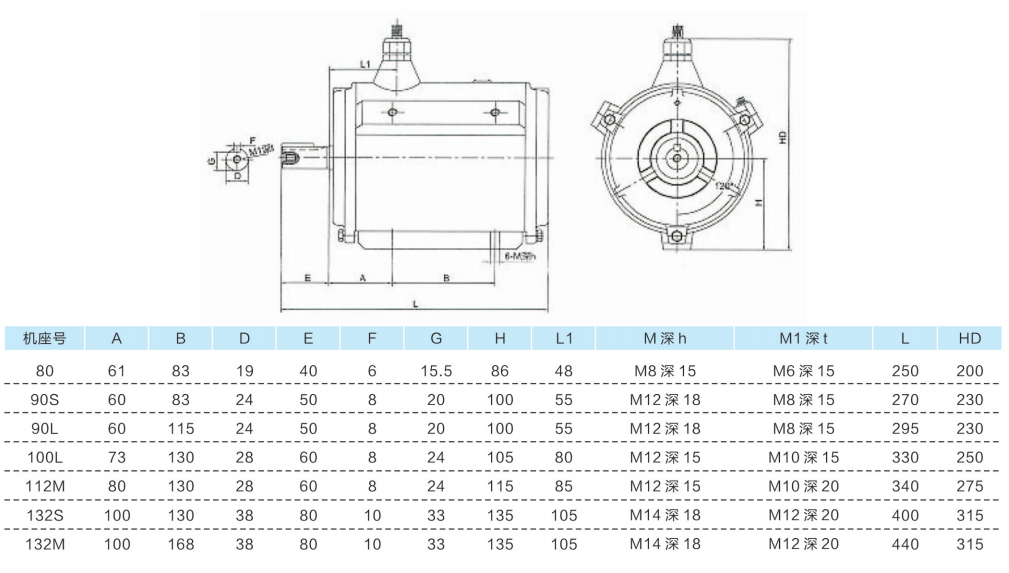

Installation and overall dimensions
