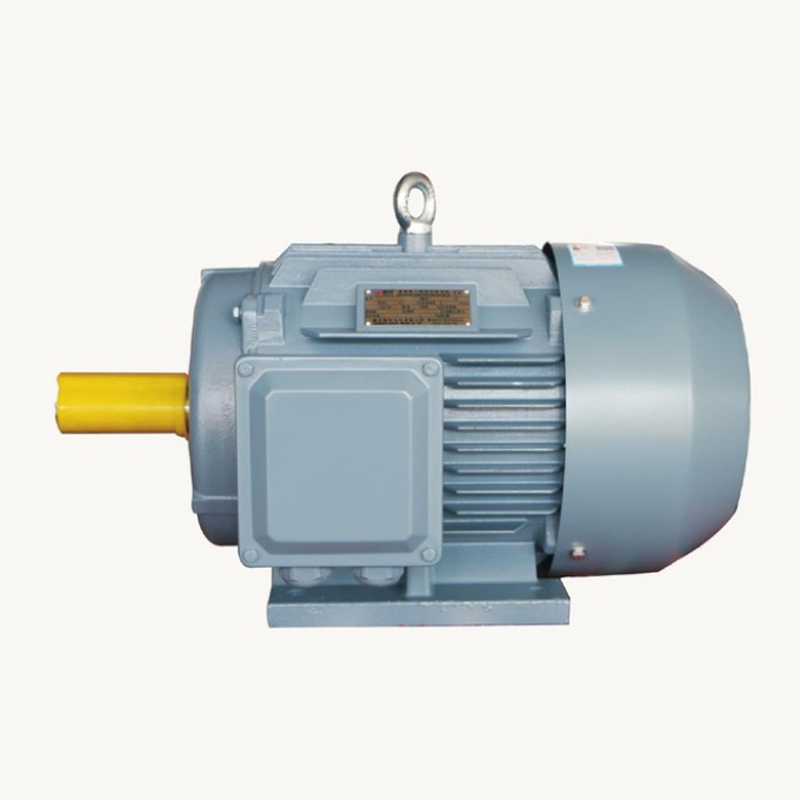

YE4 SERIES HIGH-EFFICIENCYT HREE-PHASE ASYNCHRONOUS MOTOR

Our product YE4 series premium efficiency three phase asynchronous motors implement GBIT 13299-2017 YE4 Series(IPS5)Three Phase Asynchronous Motos Technical Specifications(Frame size 80-355),The efficiency meet or exceed IEC60034 IE4EFFiciency Level.This series has premium eficiency,save energy,protect environment.it has the features as low running cost,low noise and vibration,reliable running.They are applied to various machines equirements that have no special requirements.

This series of premium efficiency three phase asynchronous motors are designed 380V,50HZ,IP55,cooling method IC411,insulation calss F with class F with class B temperature rise.They can constantly run at ambient temperature range-15-40℃ and altitude below 1000 meters.Our company also can make customized products for various voltages,400V,415V,440,660V ect,and various frequency60HZ,various installation methods,specific motors used above 1000 meters.

We would like to work together with our clients to save energy,reduce emissions and create green society.

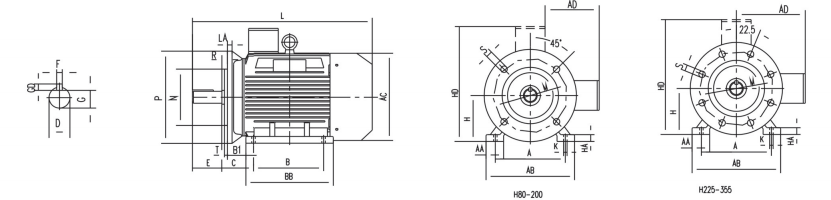

Installation diagram

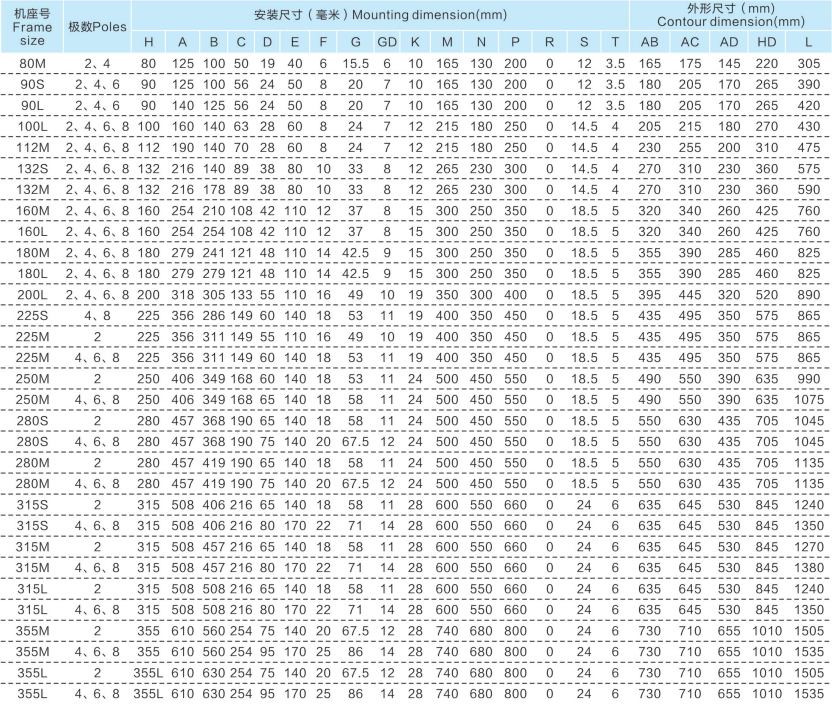

External dimensions


Note:

1.The drawing is B35 type with feet and flange.

2.B3type motors have feet but no flange,the dimensions have no M、N、P、S、Tand LA.

3.B5 typemotors have flange but no feet,the dimensions havenoA、B、C、AB、AA、BB、HA、Kand H.

4.H80-90 have no lifting bolts.


External dimensions
