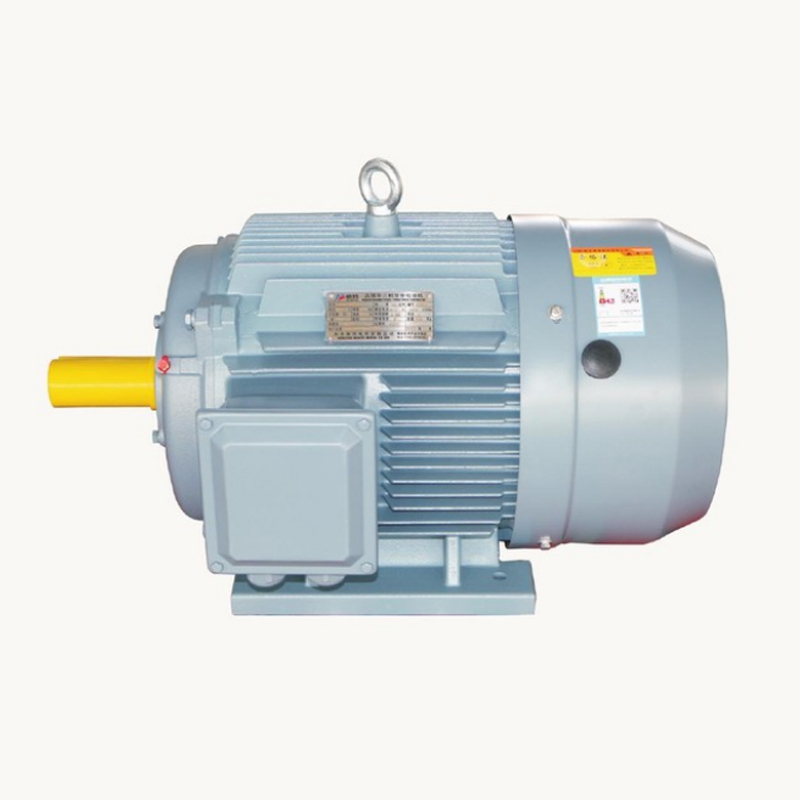

YE3 SERIES THREE-PHASE ASYNCHRONOUS MOTOR

Our product YE3 series premium efficiency three phase asynchronous motors implement GBIT 28575 YE3Series(IPS5)Premium Efficiency Three Phase Asynchronous Motos Technical Specifications(Frame size 80-355),The efficiency meet or exceed G818613-2020 Medium and Small Three Phase Asynchronous Motors Minimum Iimited Values and Efficiency Level 3.This series have features as premium eficiency,save energy,low running cost,low noise and vibration,liable running.They are applied to various machines that have no special requirements.


This series of premium efficiency three  phase asynchronous motors are designed 380V,50HZ,IP55,cooling method IC411,self fan insulation class F with class B temperature rise.They can constantly run at ambient temperature range-15-40℃.We also can make customized products for various voltages,400V,415V,440,660V ect.and various frequency60HZ,various installation methods,specific motors used above 1000m altitude.


We would like to work together with our clients to save energy,reduce emissions and create green society.


Installation diagram

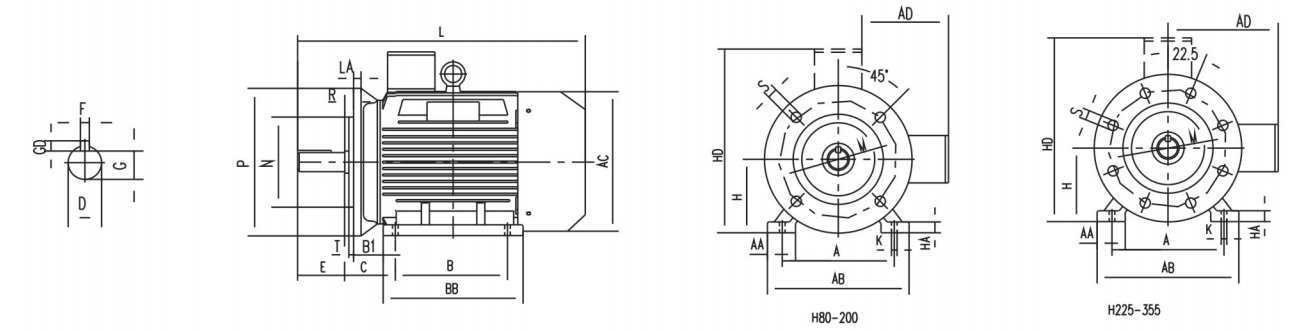

External dimensions



Note:

1.The drawing is B35 type with feet and flange.

2.B3type motors have feet but no flange,the dimensions have no M、N、P、S、Tand LA.

3.B5 typemotors have flange but no feet,the dimensions havenoA、B、C、AB、AA、BB、HA、Kand H.

4.H80-90 have no lifting bolts.

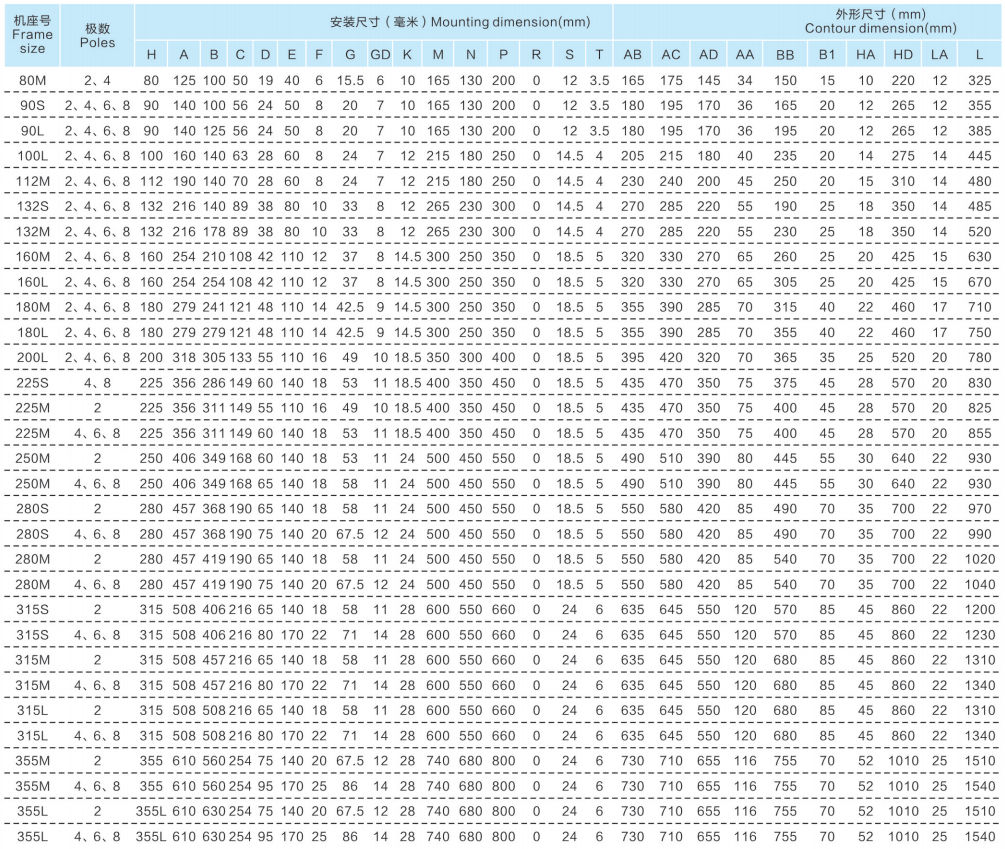

External dimensions

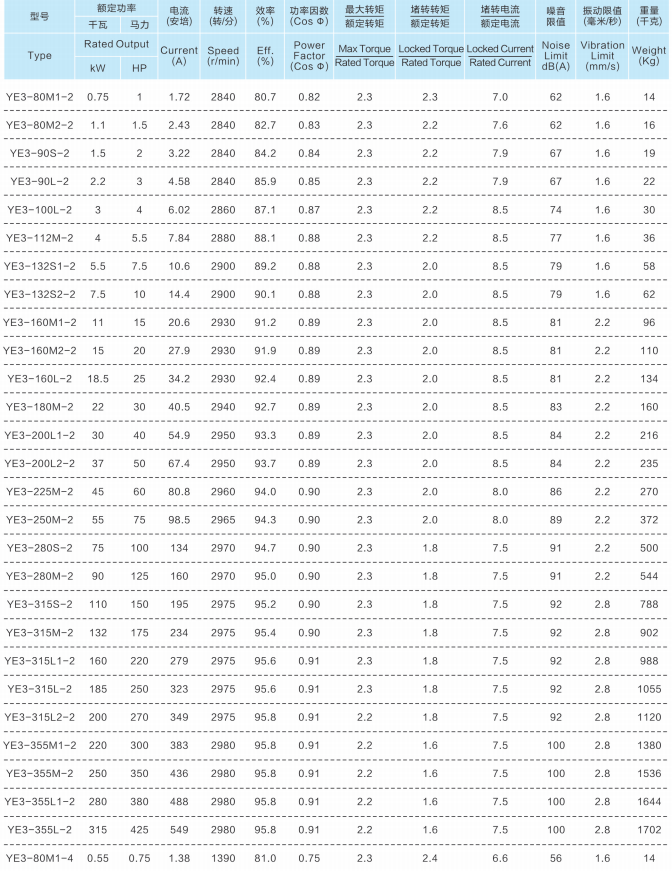

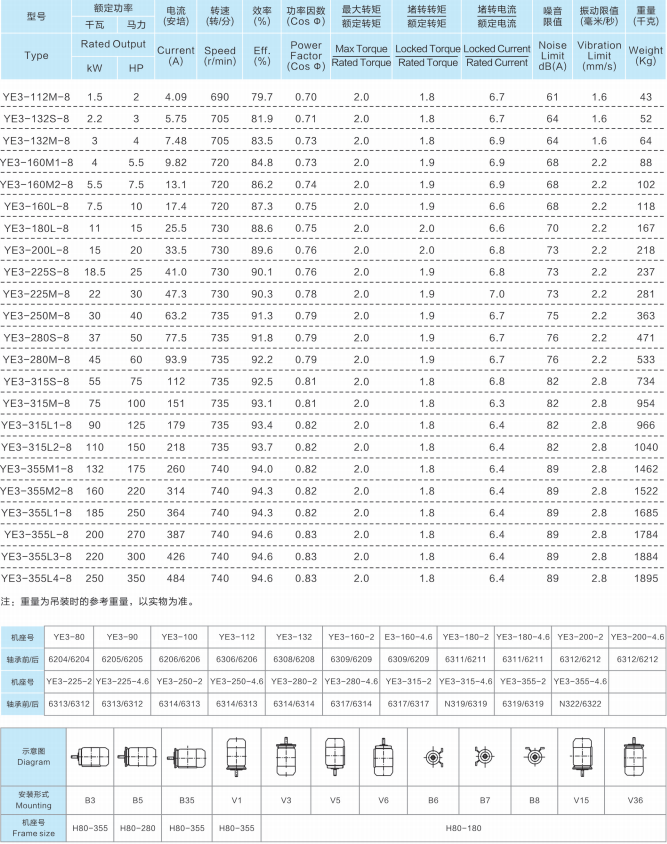

Technical data of YE3 series electric motors
