Our company's YE5 series three-phase asynchronous motor meets the first level energy efficiency standard in GB18613-2020"Motor Energy Efficiency Limits and Energy Efficiency Grades" for efficiency indicators.This series of motors is an efficient,energy-saving,environmentally friendly type with the characteristics of low operating cost,low vibration,low noise, and high reliability.lt is suitable for driving various mechanical equipment without special requirements
This series of motors has a rated voltage of 380V,a rated frequency of 50HZ,a protection Ievel of IP55,a cooling method of IC411,and a Class F insulation.The full load temperature rise is evaluated according to Class B.lt can operate continuously in an environment with an altitude of no more than 1000 meters and a temperature of-15℃~40℃. Our company can also design and manufacture motors with various voltages,frequencies, and installation methods according to user requirements,such as 220V,400V,415∨,440∨,660V voltage, 60H frequency, and ultra high efficiency motors with special requirements above 1000 meters above sea level. Our company is willing to work hand in hand with users to actively achieve energy conservation and emission reduction,and jointly create a green society.

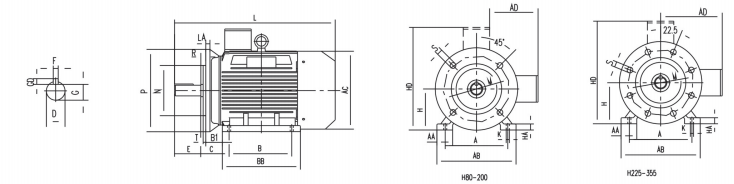

Installation diagram

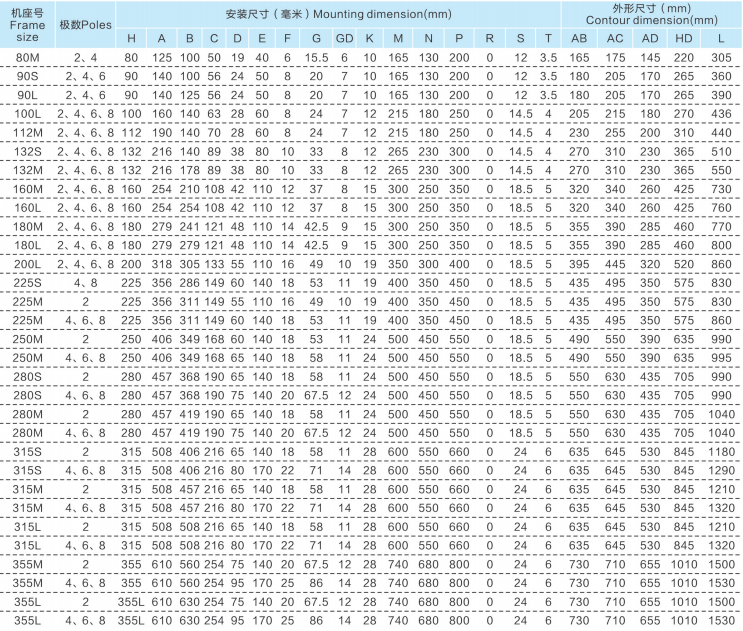

External dimensions
Note:1.The drawing is B35 type with feet and flange.
2.B3type motors have feet but no flange,the dimensions have no M、N、P、S、Tand LA.
3.B5 typemotors have flange but no feet,the dimensions havenoA、B、C、AB、AA、BB、HA、Kand H.
4.H80-90 have no lifting bolts.
External dimensions
