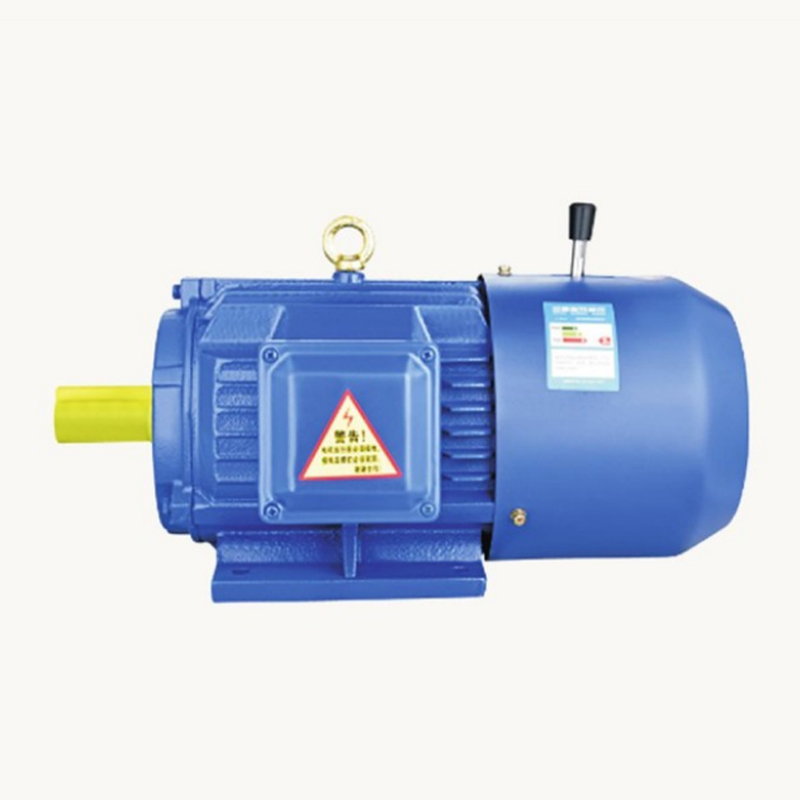

YEJ SERIES ELECTROMAGNETIC BRAKING THREE-PHASE ASYNCHRONOUS MOTOR

Our company's YEJ series electromagnetic three-phase asynchronous braking motors comply with the requirements of JB/T 6456-2022<YEJ series(IP55) electromagnetic braking three-phase asynchronous motor technical conditions(frame number63-280)>.The rated voltage of the motor is 380V,the rated frequency is 50HZ,the enclosure protection Ievel is IP44,the brake is IP23,the cooling method is IC411,the reference working system is continuous working system Sl,and the insulation level is F.This machine consists of two parts:an electric motor and an additional DC electromagnetic brake.The electric motor brake is equipped with a manual release device to complete the installation,debugging,and power outage release of the hanging basket.This series of motors has the characteristics of small size,light weight,stable and reliable operation,large braking torque,fast braking speed,accurate positioning,and convenient maintenance.

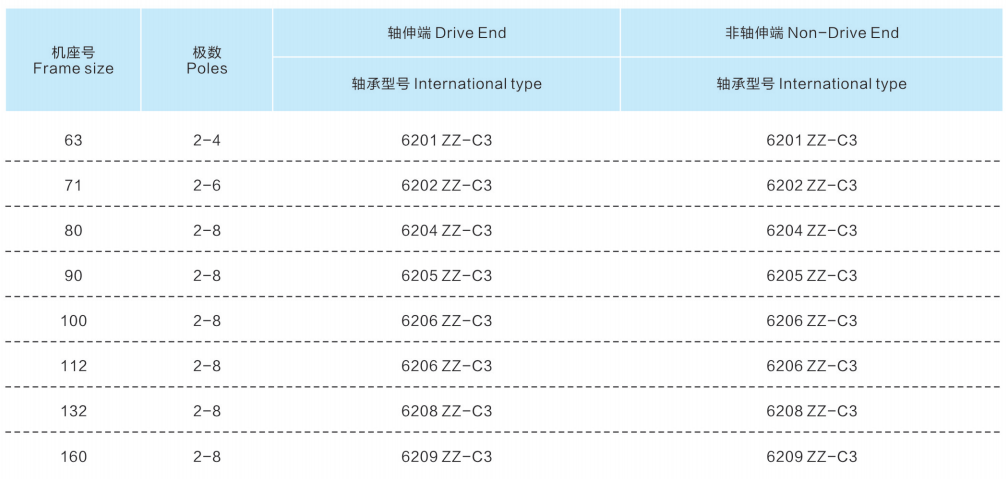

Bearing specifications

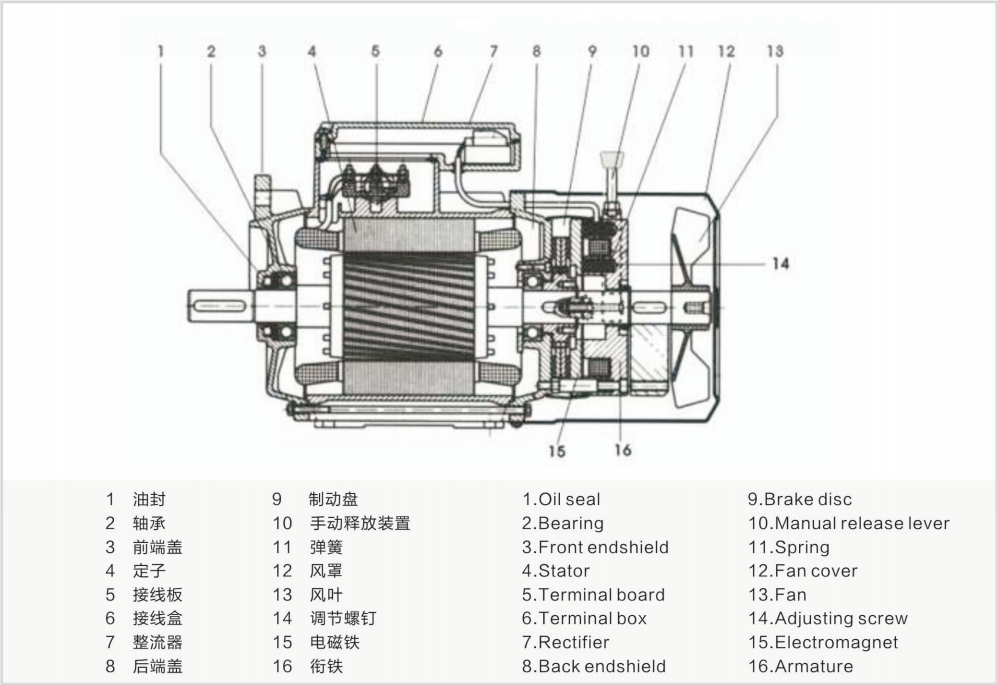

YEJ structural diagram
